| Place of Origin: | China |
| Brand Name: | GULLPOWER |
| Certification: | CE, FCC |
| Model Number: | GPW121215D |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 200-300 |
| Packaging Details: | well packed with carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 |
| Place Of Origin:: | China | Model Number:: | GPW121215D |
|---|---|---|---|
| Max Output Power: | 6KW | Input Voltage Range: | 200V—305Vac |
| Output Voltage: | 12V-15V | Operating Temperature: | -20~+45℃ |
| Store Temperature: | -40~+85℃ | Altitude: | ≤2000m |
| Size: | 254*249*63mm(No Fans, No Top Cover) | Weight: | 3.6Kg |
| High Light: | P21D Asic Miner Parts Power Supply Whatsminer M10,P21D Asic Miner Power Supply Whatsminer M10,Asic Miner Parts Power Supply Whatsminer M10 P21D |
||
Introduction

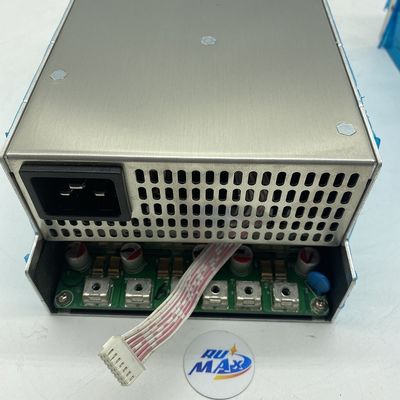

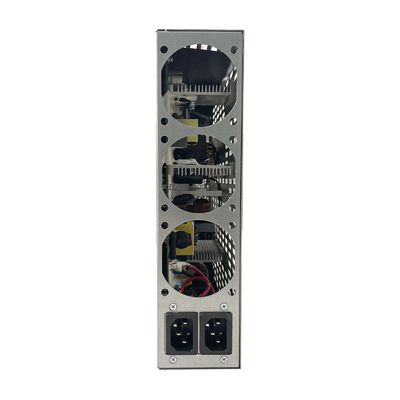

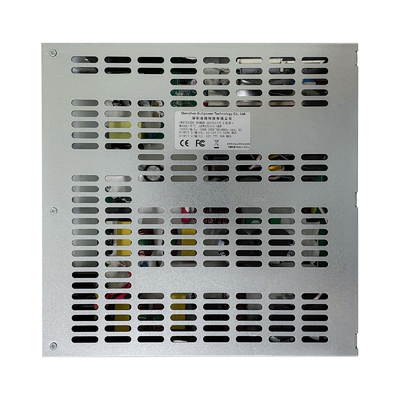

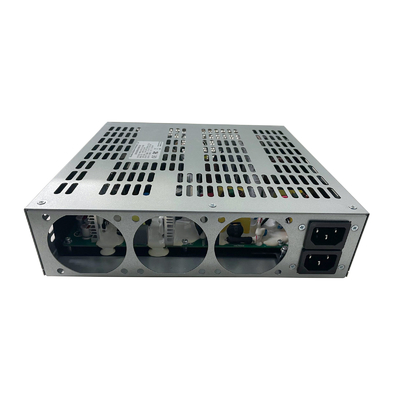

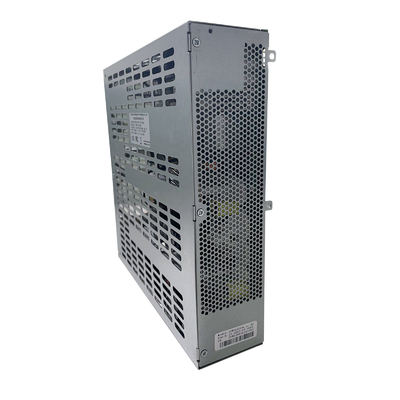

GPW121215D is born for immersion cooling miners, it is a dual voltage input, high efficiency, high power factor power supply.
The PSU has output short circuit protection, output over current protection, output over voltage protection, over temperature protection. The whole power supply is designed in strict accordance with safety regulations, in line with information technology equipment safety standards, product design in line with CE, FCC certification requirements.
Package
1. packing
The product name, model number, manufacturer's identification, inspection certificate from the manufacturer's quality department, manufacturing date, etc.Attached list is found in the packing case.
2. transportation
Suitable for vehicle, ship, aircraft transport, transport should be awning, sunscreen, civilized loading and unloading.
3. storage
Products should be stored in the packing box when not in use. The ambient temperature of the warehouse is -40℃ -- +85℃, and the relative humidity is 0% -- 95%. Harmful gases, inflammable and explosive products and corrosive chemicals are not allowed in the warehouse, and there is no strong mechanical vibration, impact and strong magnetic field effect.It should be at least 50cm away from the wall, heat source, window or air inlet, and the storage period under these conditions is generally 2 years. After 2 years, it should be re-inspected.
Specifications
Max output Power: 6000W
Input voltage range: 200V—305Vac
Operating Temperature: -20－+45℃
Store Temperature: -40―+85℃
Humidity: 0－90%(non-condensing)
Altitude: ≤2000m
Cooling Method: immersion cooling
Normal voltage range: 220-277Vac
Input Voltage range: 200－305Vac
Inrush current (cold start): ≤50A 220Vac, 25℃
Max input ac current: 30A, full load condition
Power Factor: ≥0.98 (full load condition)
Frequency range: 47—63Hz
