| Place of Origin: | China |
| Brand Name: | Bitmain |
| Certification: | FCC |
| Model Number: | APW3++ |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $30-50 Per Piece |
| Packaging Details: | carton ,wooden box |
| Delivery Time: | 2-3days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, PAYPAL, APPLE PAY, GOOGLE PAY, GC REAL TIME BANK TRANSFER, USDT |
| Supply Ability: | 1000 pcs per week |
| Output Power: | 1600W | Model Number: | APW3++ Used |
|---|---|---|---|
| Input Voltage: | 100-140 /200-240V AC | Output Voltage: | 12.15V |
| Output Frequency: | 47-63HZ | Material: | Antminer PSUAluminium |
| Dimension: | 220mm*108mm*62mm | Application: | Antminer PSU |
| Package: | Carton | Weight: | 1.5KG |
| High Light: | bitmain psu apw3++,antminer s15 power supply,antminer l3+ a10 s19j fcc ce |
||

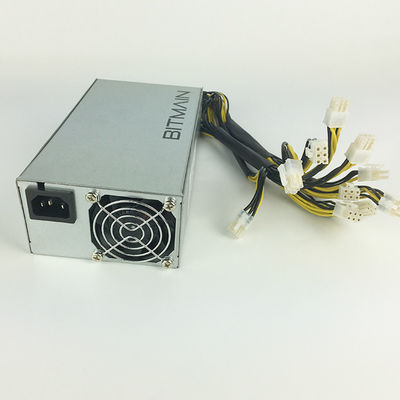

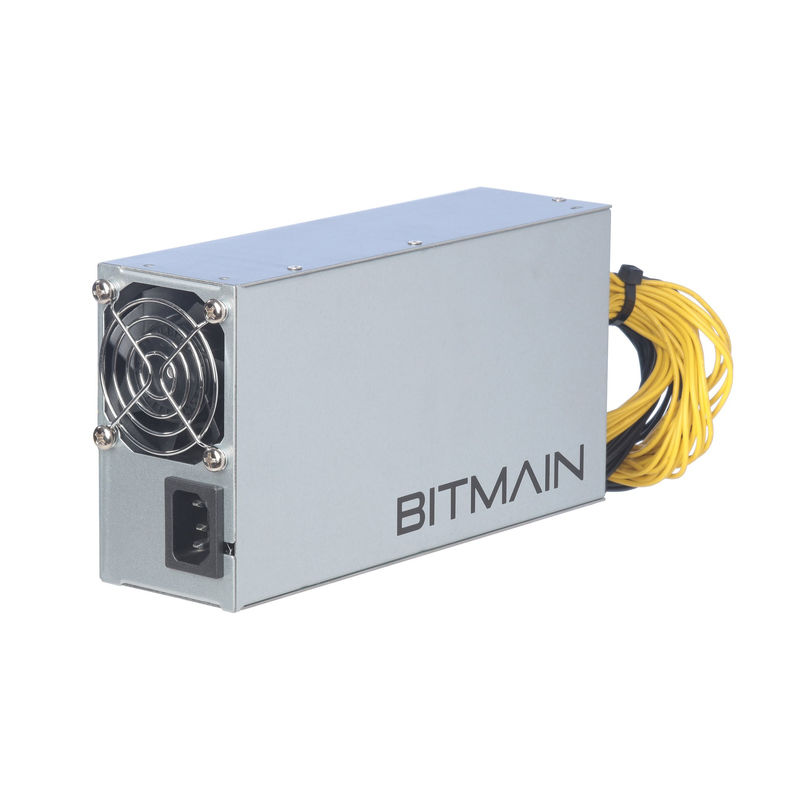

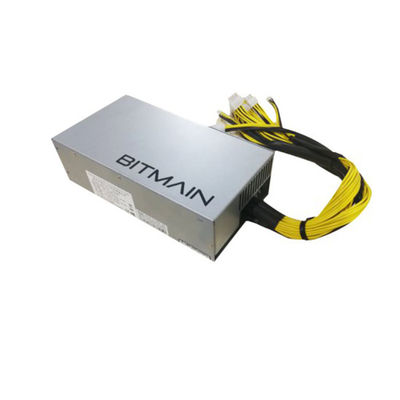

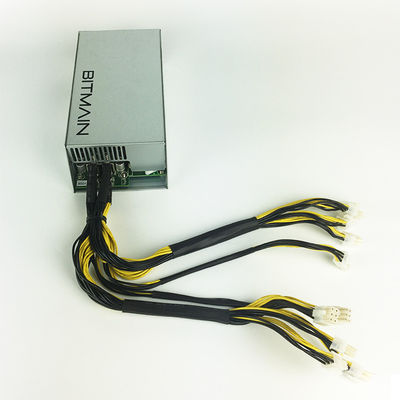

Bitmain PSU APW3++ Used for Antminer S15 T15 S9i S9j Z9 L3+ L3++ A9 Z1
|
Output |
DC Voltage |
12.0V |
|
Rated Current(200-240V input) |
150A |
|
|
Rated Power (200-240V input) |
1800W |
|
|
Rated Current(100-140V input) |
67A |
|
|
Rated Power (100-140V input) |
800W |
|
|
Ripple & Noise |
<1% |
|
|
Voltage Accuracy |
12.0-12.5V |
|
|
Source Regulation |
<1% |
|
|
Load Regulation |
<1% |
|
|
Setup, Rise Time |
<2S |
|
|
Power off Protection Trip Time |
>10mS |
|
|
Input |
Voltage Range |
100-140/200-240 V AC |
|
Frequency Range |
50-60Hz |
|
|
Power Factor |
>0.99(full load) |
|
|
Leakage Current |
<1.5mA(220V 50Hz) |
|
|
Protection |
Low-voltage Input |
80-89V AC |
|
Output Short Circuit |
Yes |
|
|
Output Overcurrent |
150-200A |
|
|
Overheat Protection |
Yes |
|
|
Environment |
Operating Temperature |
-20-60℃ |
|
Operating Humidity |
20%-90%RH(non condensing) |
|
|
Altitude |
< 2000m |
|
|
Structure |
Dimensions |
206*110*62mm |
|
Weight |
2.0kg |
|
|
|
Cooling Mode |
force air cooling |
|
|
Noise |
43DB |
Notes: The PSU is not included in the price. If you need the PSU, please contact me. Thanks!
Supply Ability
Supply Ability: 1000 Piece/Pieces per Week
|
Minable Coin |
|
|
SHA-256 |
DEM, XJO, BTC, BCH, PPC, UNB, ACOIN, CURE, CRW, TRC |
Notes
1. Power consumption figures will vary with your PSU's efficiency, the ambient operating temperature and the accuracy of the power meter.
2. There are 3 PCI-e connectors for +12V DC input on each hashing board and all 3 need to be connected to the PSU for the hashboard to operate. Do not connect more than one PSU to the same hashing board!
4. Separate power supply to control board: there is one additional 6pin PCI-e connector on the IO board which must be connected to the PSU to get power. Be sure to power on the miner only after all the 10x PCIE connectors are connected to power supply.
3. Please select the correct address for shipping before you submit your order because the address cannot be changed after the order has been submitted.
